770680-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770680-1
Datasheet:
Description:

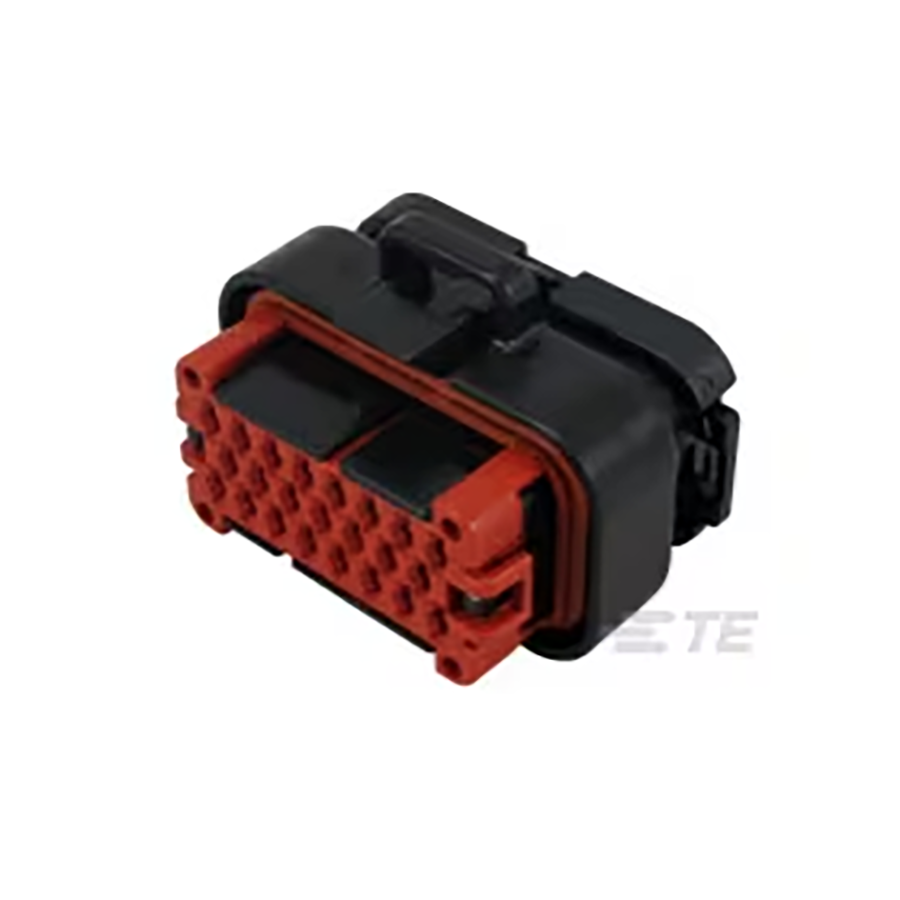

Headers and Wire Housings Free Hanging Plug, Socket Number of Positions:23 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 47.3964 mm |
| Width | 33.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 34.5948 mm |
| Material | Thermoplastic |
| Packaging | Tube |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Pitch | 3.9878 mm |
| Current Rating | 17 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 23 |
| Connector Type | Plug, Socket |
| Number of Positions | 23 |
| Number of Rows | 3 |
| Row Spacing | 3.9878 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Black |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 2907
Distributors
pcbx
pcbxUnit Price$4.62431
Ext.Price$4.62431
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.62431 | $4.62431 |
| 10 | $3.93011 | $39.30110 |
| 25 | $3.72187 | $93.04675 |
| 50 | $3.52466 | $176.23300 |
| 100 | $3.33790 | $333.79000 |
| 300 | $3.16104 | $948.31200 |
| 500 | $2.99355 | $1496.77500 |
| 1000 | $2.83494 | $2834.94000 |
